USV (Unmanned Surface Vehicles) are remote control or autonomous intelligent water surface robots which are able to fulfill multiple tasks.

These are modular designed with multiple functions and safe replacement for human's work.
Hydrographic survey is the most common and well-developed field in which unmanned surface vehicles are applied.

Such surveys usually take long sail time and constant back and forth round-turns, posting significant challenges to the safety and wellness of surveyors.

The autonomous navigation system of our Hydrography survey USVs can release personal from such repeated, tedious works.

Besides, with close cooperation with instrument manufacturers, our USVs are designed to provide the best support for instruments, such as single beam echo sounder, multibeam echo sounder, side-scan sonar, and ADCP to acquire high-quality data.

Unique hull design, low noise engine, and advanced navigation algorithm are the core technologies that keep us leading in the industry.
Hydrographic survey
Autonomous Navigation & Intelligent Obstacle Avoidance

- Autonomous Navigation Control system with intellectual property right
- GNSS autonomous navigation due to obstacle avoidance technology and advanced navigation algorithm
Hull Material

- Composite materials of carbon fiber, fiberglass and Kevlar fabric
- Separated cabin design; Water Proof , Anti-sinking , Anti-Capsizing
Data Communication

- Long distance radio communication
- Real time data and video transmission
Multi-Mission Platform

Universal Data interface, power supply and mechanical structure
Green Energy

- High Capacity lithium ion polymer battery
- Long endurance and safely packed
Intelligent Control Terminal

- Base Station-Map download, Mission planning and monitoring, Survey data acquisition, Boat control
- Remote Controller / Manual control, Mission and boat status
Innovative technology to save lives

It's a self-powered electric water rescue device (Lifebuoy) directed by a remote controller.
It’s an innovative technology that fills the gap between traditional foam buoys and jet skis as it is more precise, cheaper to deploy, and safer for rescuers.

Hull Material: PE plastic
Dimension: 1.19 m(L) *0.85 m(W)*0.2 m(H)
Weight: 13kg
Propulsion: Water-jet Thruster
Max. Speed: 12km/h(3.3m/s)
Battery Life: 30 mins@3.3m/s; 60min@1 m/s
Floatability: 225 kg
Buoyancy: 32 kg
Control Range: 800 m
Thruster Power: 1800 w
IP Rating: IP 67
Read more...
Lifebuoy
SL20
1.05 m; 5 m/s; 10 kg
An auto-pilot one-man operation platform for ADCPs
SS20
Weight: 17 kg
Payload: 10 kg
Draft: 15 cm
Propulsion: Duct type thruster
SL40
1.6 m; 5 m/s; 15 kg
Waterjet auto platform for water discharge and bathymetry measurement
ME120
2.5 m; 5 m/s; 50 kg
Convertible catamaran USV platform for hydrographic survey

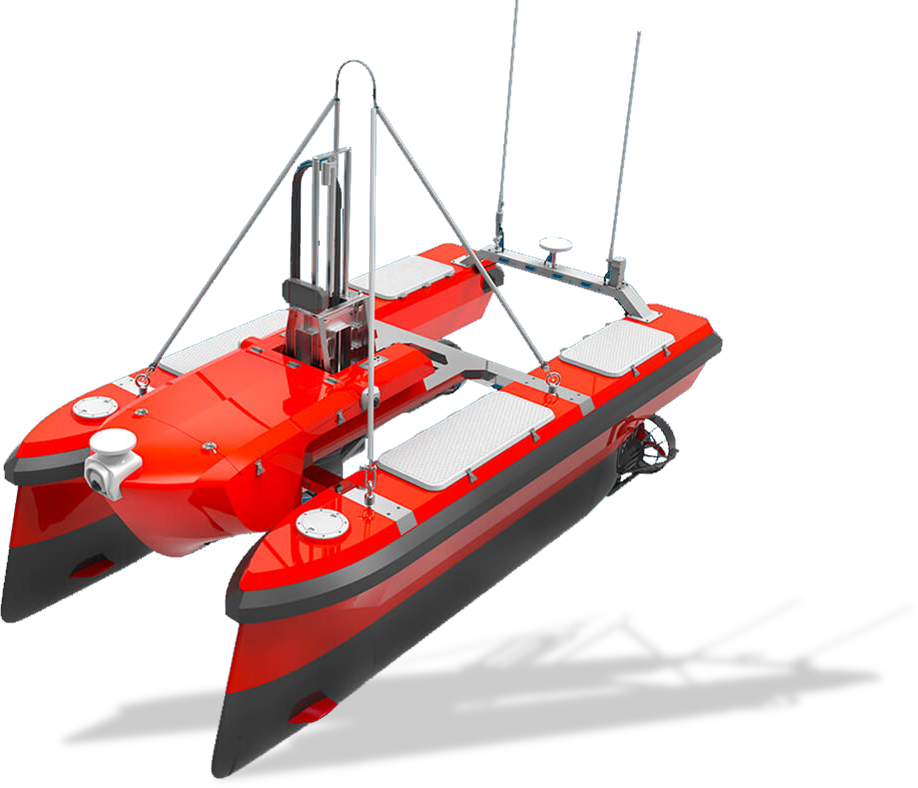

M40
3.3 m; 10 knots; 65 kg
A state of the art hydrographic platform designed for multi beam survey
M80
5.65 m; 12 knots; 150 kg
Long endurance multifunctional platform for hydrographic survey
M75
5.27 m; 30 knots; 200 kg
High-speed surveillance and outstanding performance at night shifts
L30
7.5m; 46 knots; 500 kg
Fast-response in marine fire emergency
MC120
High Efficiency Cleaning
Single battery lifetime 6 hours, can clean up 360kg of rubbish per day in maximum. At lease 4 times the efficiency compared to traditional cleaning methods.

L25 - Multi-function Marine Survey USV

Hydrographic Survey USV

Dimension: (L)7.5 m *(W)2.8 m*3mH

Weight: 2400 kg

Payload: 200 kg

Draft: 40 cm

SE40
Hull Material: Carbon fiber
Dimension: (L)165 cm *(W)70 cm
Weight: 44 kg (with batteries

Payload: 25 kg
M40P is a multi-purpose surveying unmanned surface vessel (USV) platform for estuary, on-shore, and off-shore applications.
10M PROZERO ISR USV - SURVEILLANCE
10M PROZERO OSR USV - OIL SPILL RESPONSE
